Specifications of Gasoline LPG Forklift
Rated Load Capacity 3000kg, 3500kg
Engine Engine from Nissan, and other Chinese supplier
Gearbox Hydraulic/automatic (TCM technology)
Standard Mast 2-stage mast (3m)
Container Mast (Optional) 2-stage or 3-stage full free mast (3m-6m)
Tyre Pneumatic tyre (Standard), solid tyre (Optional)
Side Shifter (Optional) Integrated type side shifter, CASCADE side shifter

Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year


1. The Gasoline LPG Forklift of J series is engineered in enclosed structure to reduce the noise and improve the comfort during operation.

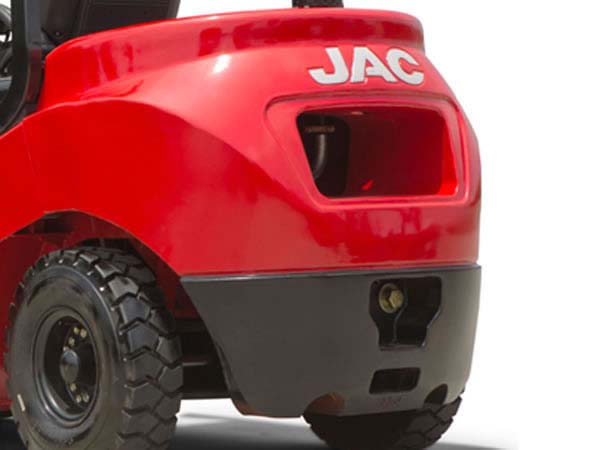

2. Newly-developed design for the balance weight makes the forklift truck quite attractive.

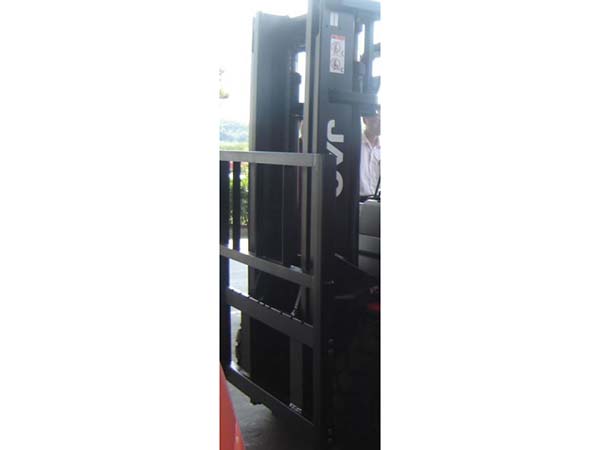

3. Mast

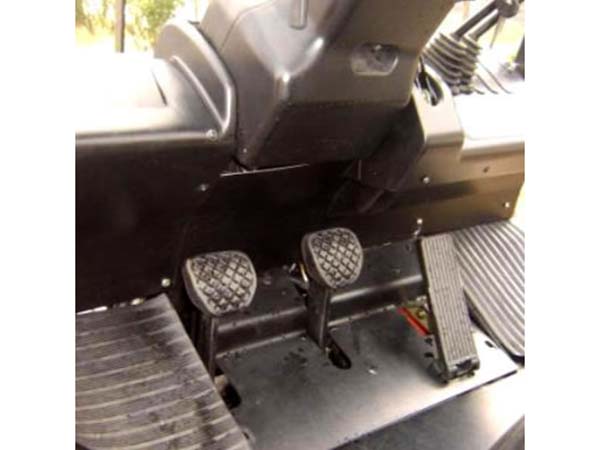

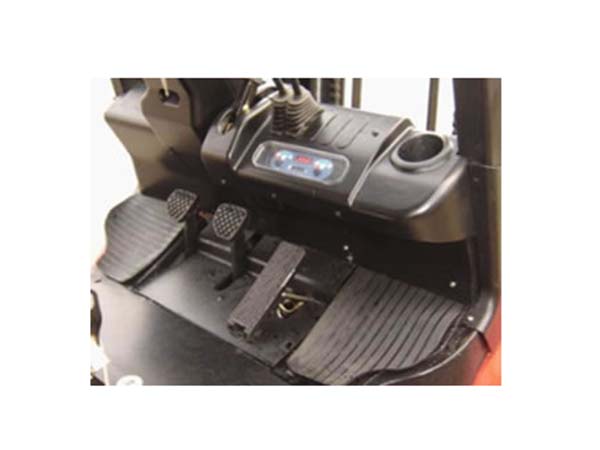

4. The spacious operation room can relieve the fatigue of the operator.

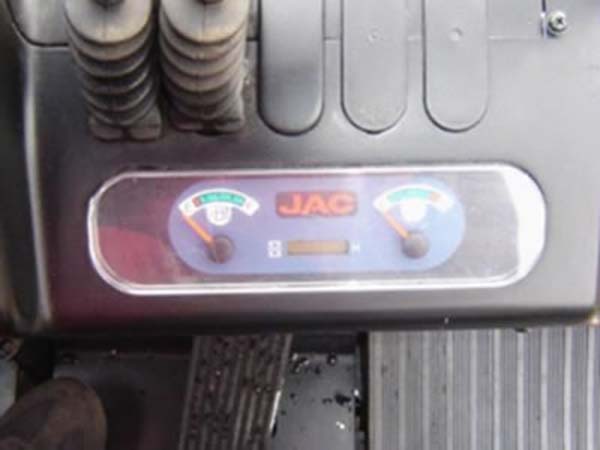

5. The instrument panel of the diesel powered lift truck is installed at right hand side. The simple design makes it easier for the operator to read the parameters.

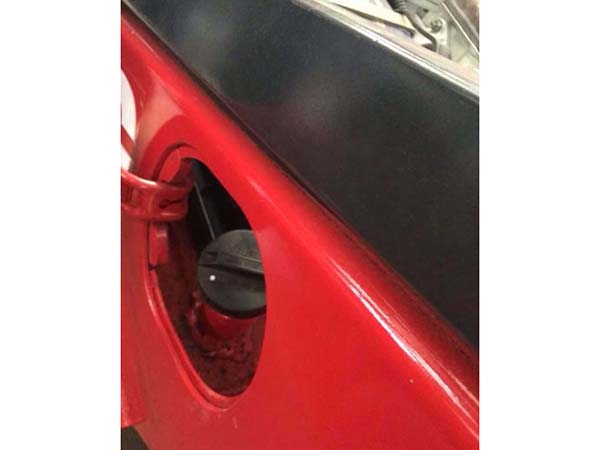

6. Practical and eye-catching, our Gasoline LPG Forklift adopts the fuel tank cap for cars.

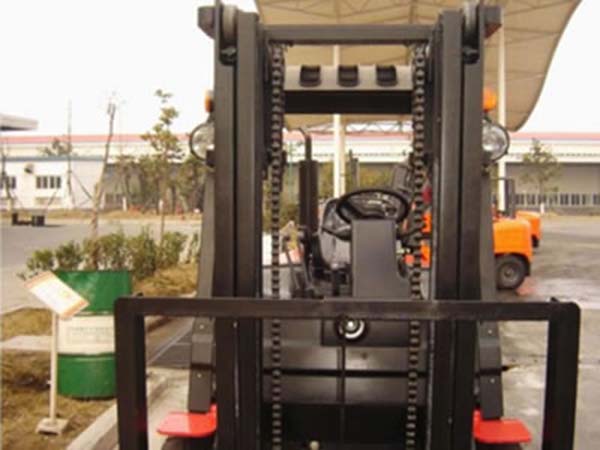

7. Wide field of view for high safety and high working efficiency.

Technical Parameters
Model Unit CPQD30J CPQD35J
Load Capacity Kg 3000 3500
Load Center mm 500 500
Mast Lifting height mm 3000 3000
Mast Free Lift mm 130 130
Mast Lifting Speed (With Load) mm/s 430 430
Mast Tilting Angle (Front/Rear ) 6°/ 12° 6°/ 12°
Driving Speed km/h 21 21
Turning Radius mm 2500 2575
Ground Clearance mm 130 130
External Dimension Length to face of forks mm 2735 2805
Overall width mm 1190 1190
Height of overhead guard (cabin) mm 2105 2105
Height of mast, extended mm 4260 4270
Wheelbase mm 1700 1700
Tread Front mm 1000 1000
Rear mm 970 970
Overhang (front) mm 480 495
Fork mm 1070 1070
Service Weight kg 4280 4820
Engine Model NISSAN K21 NISSAN K25
Rated Output KW 31.2 37.4
Rated power speed rpm 2250 2300
