Gasoline LPG Forklift (1-1.8T Forklift Truck, H Series)

  1. Home
  2. Products
  3. Gasoline LPG Forklift
  4. Gasoline LPG Forklift (1-1.8T Forklift Truck, H Series)
Specifications of Gasoline LPG Forklift
Rated Load Capacity 1000kg, 1500kg, 1800kg
Engine Engine from Nissan, and other Chinese supplier
Gearbox Hydraulic/automatic (TCM technology)
Standard Mast 2-stage mast (3m)
Container Mast (Optional) 2-stage or 3-stage full free mast (3m-6m)
Tyre Pneumatic tyre (Standard), solid tyre (Optional)
Side Shifter (Optional) Integrated type side shifter, CASCADE side shifter

Related Information
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year


1. The Gasoline LPG Forklift of 1-1.8 ton H series is constructed based on ergonomics. The seat location and the steering wheel angle can be adjusted freely to obtain large working space. The special design creates comfortable working environment and minimizes the fatigue of the operator.

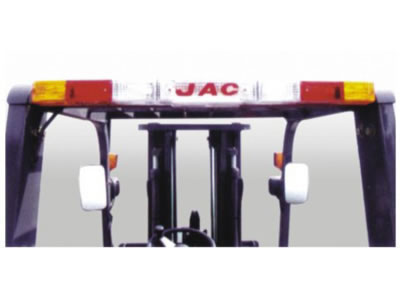

2. The combined type taillight for the warehouse equipment is installed at the top of the overhead guard. Apart from the nice appearance, the eye-catching design makes the forklift truck quite safe for use at night. The appearance design of the Gasoline LPG Forklift is granted national patent.

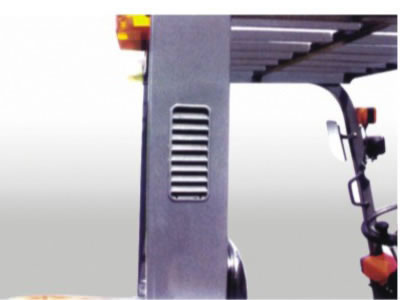

3. The cyclone filter, as well as the air inlet system installed at high level, effectively extends the lifespan of the engine.

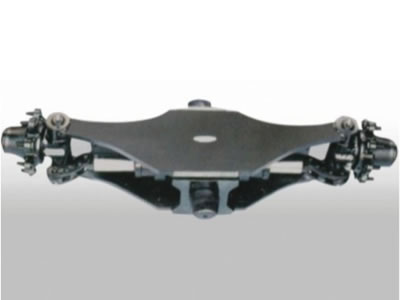

4. Hydraulic load-free induction steering gear and transverse oil cylinder steering system enable labour-saving operation. The steering axle is capable of affording 300,000 times fatigue test.

5. The eco-friendly design of the Gasoline LPG Forklift offers full protection to both the user and the environment.
6. Small overall dimension, low centre of gravity, small turning radius, and excellent manoeuvrability.
7. The frame and the steering axle of the material handling equipment are engineered with shock absorber to reduce the impact and maximize the comfort during operation.
8. Multiple engines for selection.

Technical Parameters of Gasoline LPG Forklift
Model Unit CPQD10H CPQD15H CPQD18H
Load Capacity Kg 1000 1500 1800
Load Center mm 500 500 500
Mast Lifting height mm 3000 3000 3000
Mast Free Lift mm 155 155 155
Mast Lifting Speed (With Load) mm/s 550 550 550
Mast Tilting Angle (Front/Rear ) 6°/ 12° 6°/ 12° 6°/ 12°
Driving Speed km/h 14 14 14
Turning Radius mm 1880 1955 1985
Ground Clearance mm 115 115 115
External Dimension Length to face of forks mm 2171 2231 2274
Overall width mm 1080 1080 1080
Height of overhead guard (cabin) mm 2060 2060 2060
Height of mast, extended mm 3930 3930 3930
Wheelbase mm 1400 1400 1400
Tread Front mm 891 891 891
Rear mm 920 920 920
Overhang (front) mm 407 407 407
Fork mm 1070 1070 1070
Service Weight kg 2430 2790 2890
Engine Model Chinese engine NISSAN K21
Rated Output KW 36.5 31.2
Rated power speed rpm 2500 2250

Related Names
1-1.8T Forklift Truck︱Container Forklift Truck︱Warehouse Equipment
