Electric Forklift(4-6T Four Wheel Forklift, S Series)
- Home
- Products
- Electric Forklift
- Electric Forklift(4-6T Four Wheel Forklift, S Series)

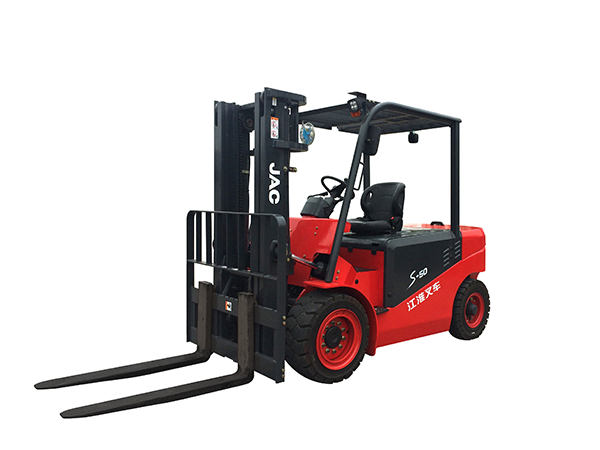

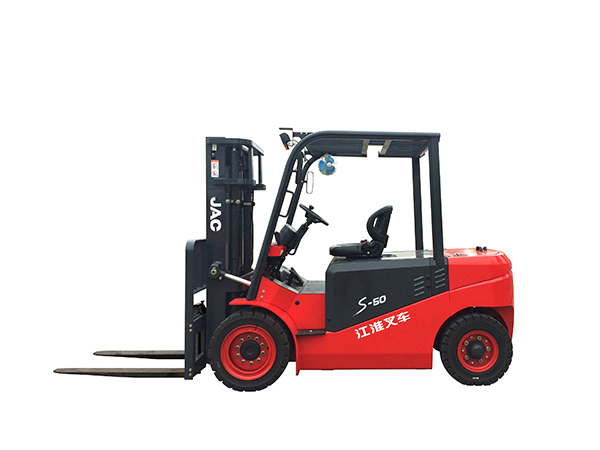

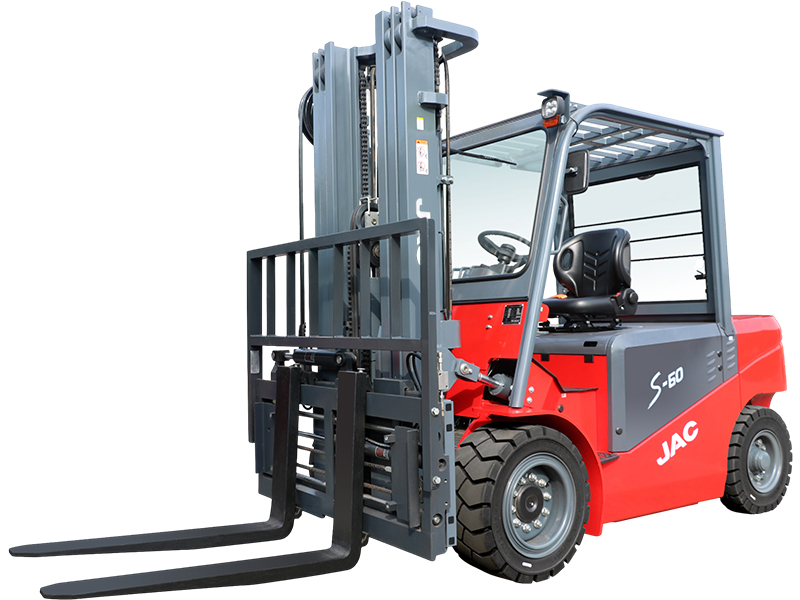

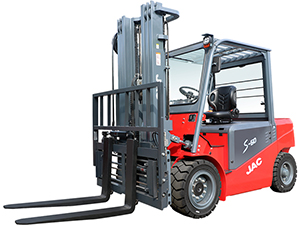

CPD45S/CPD50S/CPD60S electric forklifts have the advantages of short braking time and low energy consumption. They are equipped with wet-type multi-disk brake which is very durable and provides excellent braking effect. These electric forklifts use integral drive design that their gearbox oil can lubricate gears to reduce the maintain cost. These electric forklifts use lithium battery as power source. In addition, they have power regeneration function to prolong the service time that it recovers the electric quantity of battery when the electric forklift is braking, slowing down or steering.
Technical Parameters of Electric Forklift| Model | CPD45S | CPD50S | CPD60S | ||
| Features | Power type | Battery | |||
| Rated load（kg） | 4500 | 5000 | 6000 | ||
| Load center distance（mm） | 500 | 500 | 600 | ||
| Lift height（mm） | 3000 | ||||
| Free lift height（mm） | 120 | 120 | 150 | ||
| Fork size | L×W×T（mm） | 1070×150×50 | 1220×150×60 | ||
| Mast tilt angle | Front/Rear | 6°/9° | |||
| Minimum turning radius（mm） | 2704 | 2704 | 2780 | ||
| Minimum right angle stacking aisle width（mm） | 4300 | 4300 | 4350 | ||
| Minimum right angle aisle width（mm） | 2904 | 2904 | 2980 | ||
| Minimum ground clearance（mm） | 145 | ||||
| Height of overhead guard（mm） | 2285 | ||||
| Height form seat to overhead guard（mm） | 1020 | ||||
| Overhang (FR)（mm） | 578 | 578 | 586 | ||
| Performance | Maximum travel speed | Full load（km/h） | 13 | ||
| No load（km/h） | 14 | ||||
| Maximum lift speed | Full load（mm/s） | 280 | 280 | 265 | |
| No load（mm/s） | 400 | 400 | 380 | ||
| Maximum lowering speed | Full load（mm/s） | 380 | 400 | 430 | |
| No load（mm/s） | 350 | 350 | 360 | ||
| Maximum gradeability（%） | 15 | 15 | 12 | ||
| Dimensions | Overall length | Without forks（mm） | 3046 | 3046 | 3134 |
| Overall width（mm） | 1520 | ||||
| Mast height at maximum lift (with backrest)（mm） | 4270 | 4270 | 4280 | ||
| Mast lowered height（mm） | 2245 | ||||
| Power | Tires | Front wheel | 28×12.5-15 | ||
| Rear wheel | 7.00-12 | ||||
| Wheelbase（mm） | 2000 | ||||
| Tread | Front wheel/rear wheel（mm） | 1200/1130 | |||
| Self weight | Without load（kg） | 7400 | 7800 | 8950 | |
| Battery | Voltage/capacity（V/Ah） | 80/700 | 80/720 | 80/720 | |
| Motor | Traveling（KW） | 11×2 | |||
| Lifting（KW） | 12×2 | ||||
| Way of control | AC | ||||
| Operating pressure（Mpa） | 18.5 | ||||
| Maximum drawbar pull（KN） | 40 | ||||
Note: JAC reserves the right to change these specifications and parameters at any time without prior notice.
Selling Points

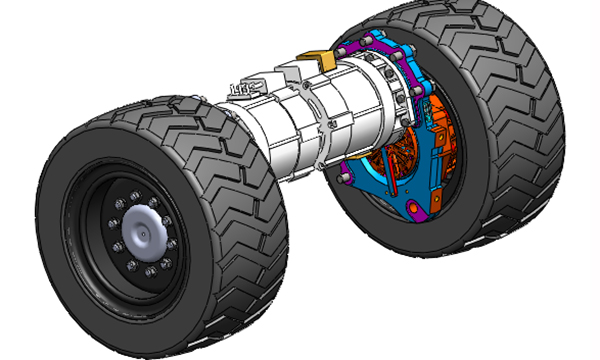

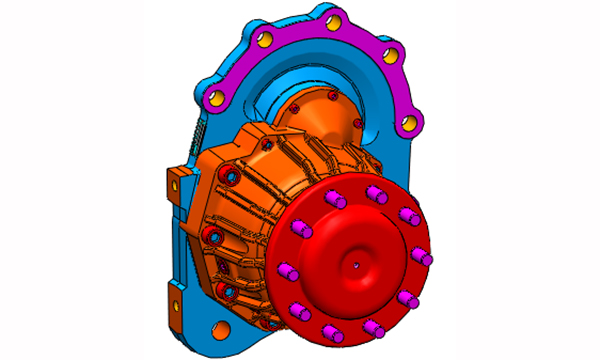

1. The integrated drive axle and gearbox structure ensures high transmission efficiency and low noise.
2. Wet-type multi-disk brake is very durable and provides excellent braking effect.

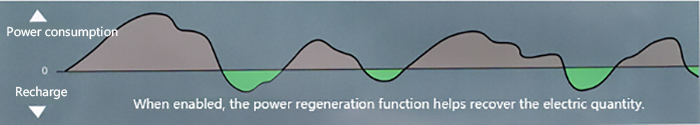

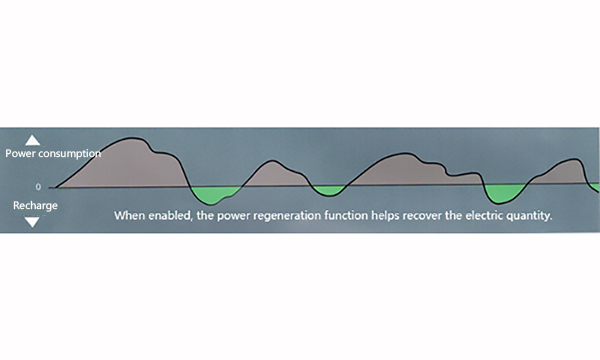

3. This electric forklifts uses lithium battery as power source. The power regeneration function prolongs its working time which enables recovery of electric quantity when the electric forklift is braking, slowing down or steering.

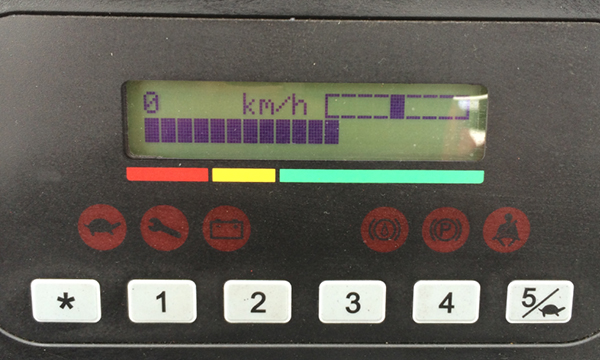

4. The meter real-time displays steering angle to let the driver know the tire direction. When its speed is more than 5km/h and steering angle is over the set value, the electric forklift will automatically limit the speed to ensure the safety.

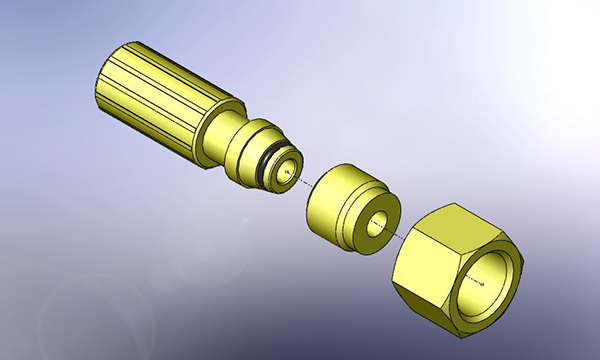

5. Hydraulic system uses 24° cone O-ring seal which provides reliable sealing and avoids leakage.
6. Its door frame system has buffer function to ensure safe and stable operation which reduces the shock when the goods are lowering the altitude.

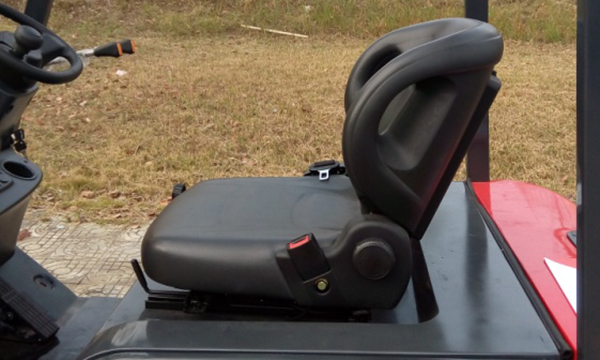

7. The suspension OPS seat with free back and forth movement and adjustable backrest angle provides a comfortable and stable working environment for the driver.
