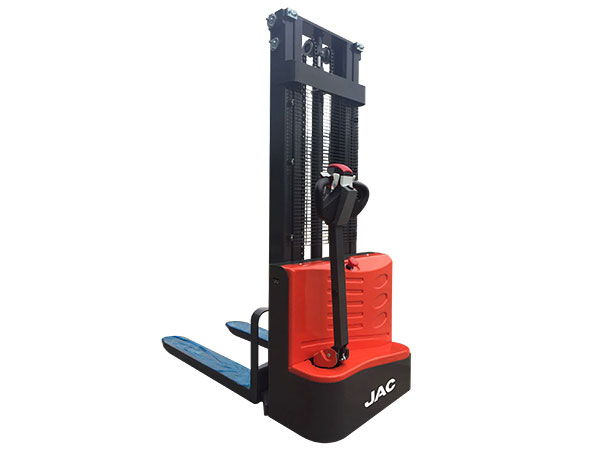

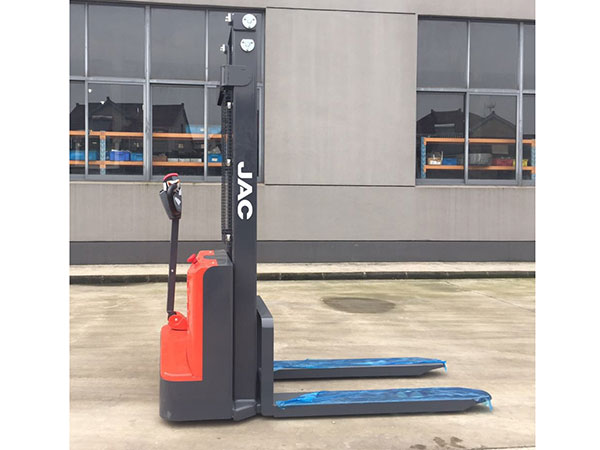

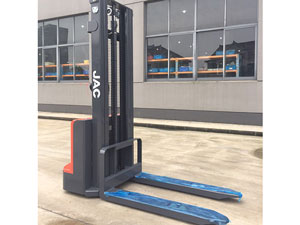

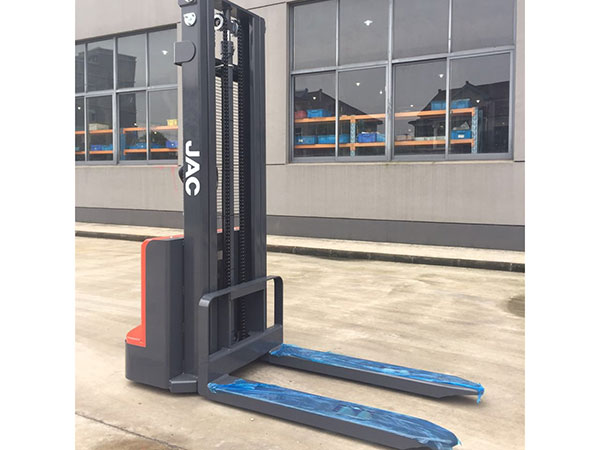

1.5T Walk Behind Electric Stacker
Inquiry Form
Features

1. Flexible side stance operator platform,wide-view mast and tighter turning radius improve the ability to fit into tighter spaces for greater narrow aisle capability.

2. Ergonomically lengthened control handle provides operator with comfort and precise load control.

3. The walkie pallet jack is equipped with large-power high-performance lift pump, delivering efficient and stable lifting and lowering functionalities.

4. Lift control buttons on both sides of the handle allow easy access from either side of the riding pallet jack platform.

5. Crawl speed button on the operating handle provides precise controllability and superior maneuverability at a slower speed.

6. The handle features a return spring which can automatically restore the handle to its vertical position, enhancing durability.

7. Battery discharge LED indicator clearly displays the state of charge in four colors—green, blue, orange and red.

8. Key switch and battery discharge indicator are integrated in the handle for ease of operations.

9. External charger provides better heat dissipation performance and eliminates the risk of battery damage caused by stacker bump and vibration.

10. Original Germany waterproof microswitch offers excellent protection against dust, humidity and low temperature, ideal for harsh working environments.

11. Permanent magnet motor drive system features small volume, light weight, low energy loss and high working efficiency.

12. High-density welded wire mesh is sturdy and durable, offering excellent protection effects.

13. Reinforcing ribs are set between internal and external gantries to improve the sturdiness of walkie pallet jack and prevent the gantry from toppling over due to load lifting.

14. The electric stacker features auto power-off braking function—when you release or press the handle, the stacker will automatically stop and brake, to improve the safety and reliability for conditions that stacker is travelling on ramps or out of control.

Technical Parameters of the Walk Behind Electric Stacker
Manufacturer Unit JAC
Model CDD15
Power type Electric
Operation Pedestrian
Rated traction weight kg 1500
Load center distance mm 600
Axle centre to fork face mm 720
Wheel base mm 1167
Service weight (with battery) kg 415 460 477 495 503 515 525
Tires PU
Driving wheel size Φ×w(mm) Φ210×70
Bearing wheel size Φ×w(mm) Φ80×70
Balance wheel size Φ×w(mm) Φ115×55
Number of front/rear wheel (x = drive wheel) 1x+1/4
Tread width mm 410/535
The max. lifting height mm 1600 2000 2500 3000 3300 3500 4000
Load capacity at max. lifting height kg 1500 1300 1100 900 800 700 300
Extended mast height mm 2015 2452 2952 3452 3752 3952 4452
Lowered mast height mm 2015 1495 1745 1995 2145 2245 2495
Free lifting height mm 1600 0 0 0 0 0 0
Height of handle in the driving position min./max. mm 700/1225
Lowered fork height mm 86
Overall length mm 1740
Length to fork face mm 590
Overall width mm 795
Fork dimensions s/e/l (mm) 60/160/1150
Width of forks mm 570/695
Min. ground clearance mm 26
Aisle width with pallet 1000 x 1200 across forks mm 2074
Aisle width with pallet 800 x 1200 along forks mm 2040
Min. turning radius mm 1342
Travel speed, laden/unladen km/h 4.0/4.2
Lifting speed, with/without load mm/s 92/136
Lowering speed, with/without load mm/s 112/98
Maximum climbing ability, with/without load % 6/8
Service brake Electromagnetic braking
Drive motor, 60 minute rating kW 0.75
Lift motor rating at S3 15% kW 2.2
Battery according to DIN 43531/35/36 A, B , C, no no
Battery voltage V/Ah 2×12/100
Battery weight (± 5%) kg 2×27
Type of drive control DC power
Noise level at operator's ear dB(A) 69
Steering type Mechanical steering
